高速摄像机i-SPEED 2

  • 产品介绍
  • 性能参数
  • 产品图片
  • 手册

紧凑小巧 便携易用 专业分析

      i-SPEED 2系列的设计平衡了价格、速度、分辨率、外观等诸多因素,是预算有限的实验室、产线及工艺部门的理想选择。高敏感度的CMOS传感器可达百万像素的高速视频-满足大部分生命科学、机器人及机械运动的应用要求。全局曝光快门的应用使之成为一款真正的专业级高速摄像机--可精确记录复杂的旋转运动,但价格并不至于打破实验预算。

      i-SPEED 211与221标配一块续航能力为1小时的电池,配合笔记本电脑可适应野外操作;选配Hi-G外壳使产品更加坚固耐用。

i-SPEED 210/211 分辨率1280*1024,最高帧速79,500fps

i-SPEED 220/221 分辨率1600*1600,最高帧速204,100fps

i-SPEED 230   分辨率1280*864,最高帧速16,879fps



i-SPEED 210 - Frame Rates - Resolution - Recording Time(s)

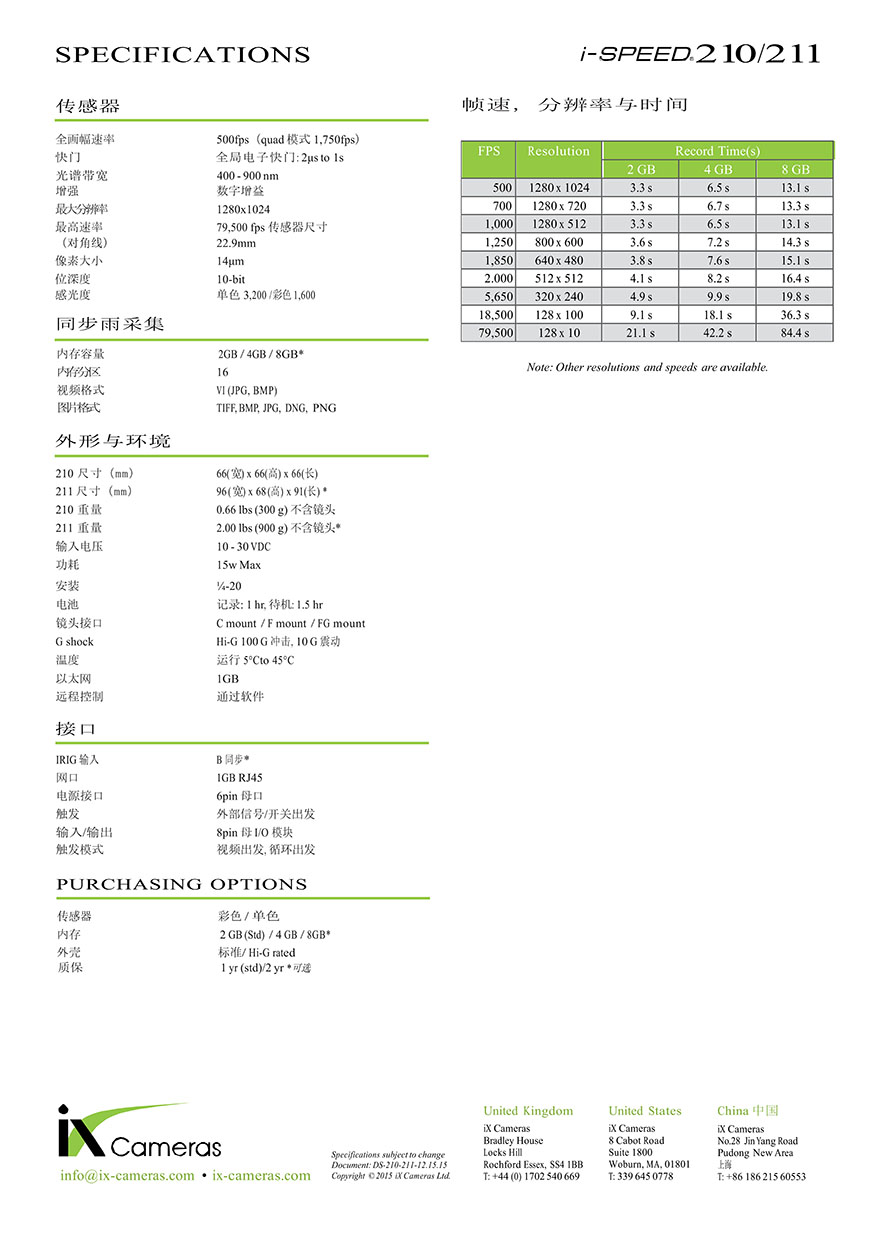

210 Datasheet


FPS Resolution 2 GB 4 GB
500 1280 x 1024 3.3 sec 6.5 sec
700 1280 x 720 3.3 sec 6.7 sec
1,000 1280 x 512 3.3 sec 6.5 sec
1,250 800 x 600 3.6 sec 7.2 sec
1,850 640 x 480 3.8 sec 7.6 sec
2,000 512 x 512 4.1 sec 8.2 sec
5,650 320 x 240 4.9 sec 9.9 sec
18,500 128 x 100 9.1 sec 18.1 sec
79,500 1280 x 10 21.1 sec 42.2 sec


i-SPEED 211 - Frame Rates - Resolution - Recording Time(s)
211 Datasheet


FPS Resolution 4 GB 8 GB
500 1280 x 1024 6.5 sec 13.1 sec
700 1280 x 720 6.7 sec 13.3 sec
1,000 1280 x 512 6.5 sec 13.1 sec
1,250 800 x 600 7.2 sec 14.3 sec
1,850 640 x 480 7.6 sec 15.1 sec
2,000 512 x 512 8.2 sec 16.4 sec
5,650 320 x 240 9.9 sec 19.8 sec
18,500 128 x 100 18.1 sec 36.3 sec
79,500 1280 x 10 42.2 sec 84.4 sec


i-SPEED 220 - Frame Rates - Resolution - Recording Time(s)

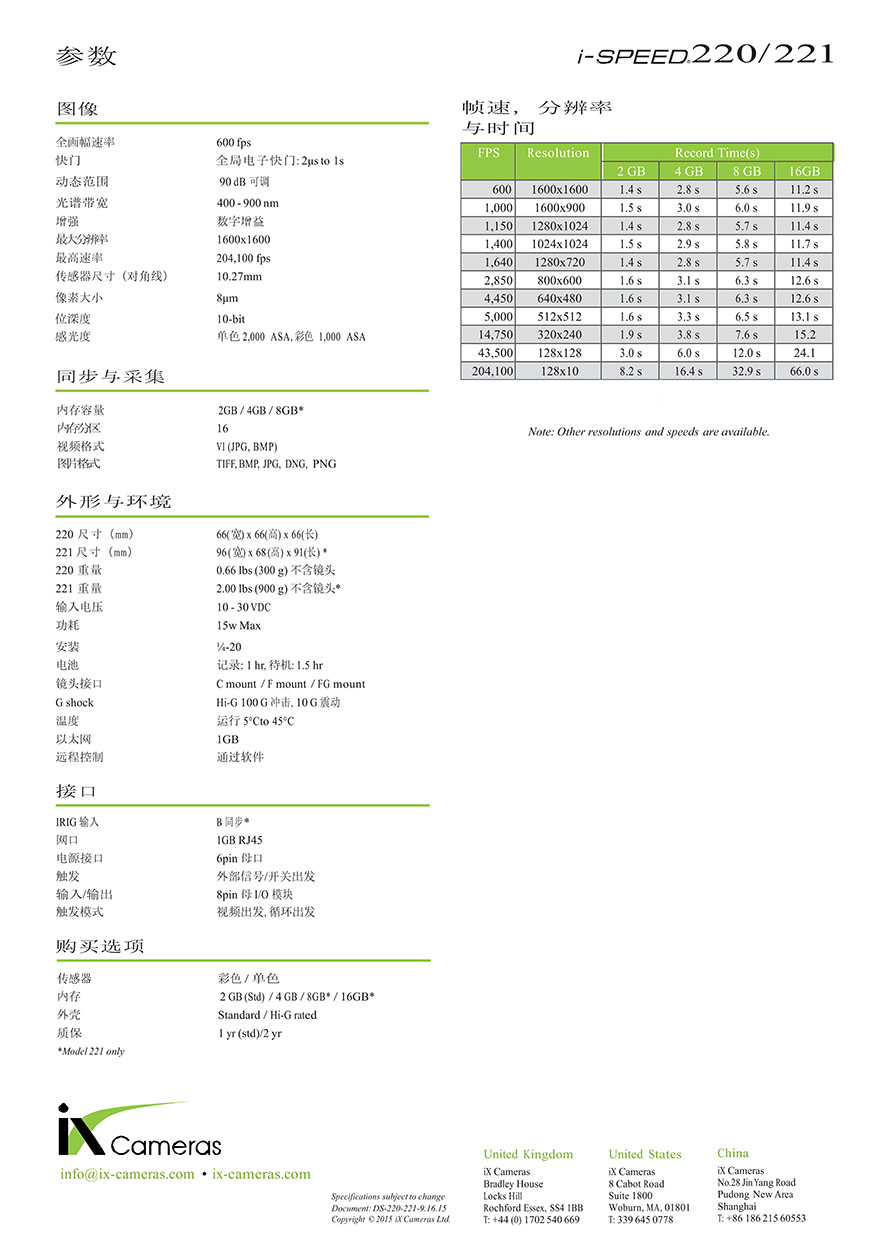

220 Datasheet


FPS Resolution 2 GB 4 GB
600 1600 x 1600 1.4 sec 2.8 sec
1,000 1600 x 900 1.5 sec 3.0 sec
1,150 1280 x 1024 1.4 sec 2.8 sec
1,400 1024 x 1024 1.5 sec 2.9 sec
1,640 1280 x 720 1.4 sec 2.8 sec
2,850 800 x 600 1.6 sec 3.1 sec
4,450 640 x 480 1.6 sec 3.1 sec
5,000 512 x 512 1.6 sec 3.3 sec
14,750 320 x 240 1.9 sec 3.8 sec
43,500 128 x 128 3.0 sec 6.0 sec
204,100 128 x 10 8.2 sec 16.4 sec



i-SPEED 221 - Frame Rates - Resolution - Recording Time(s)
221 Datasheet


FPS Resolution 4 GB 8 GB 16 GB
600 1600 x 1600 2.8 sec 5.6 sec
1,000 1600 x 900 3.0 sec 6.0 sec 11.9 sec
1,150 1280 x 1024 2.8 sec 5.7 sec 11.4 sec
1,400 1024 x 1024 2.9 sec 5.8 sec 11.7 sec
1,640 1280 x 720 2.8 sec 5.7 sec 11.4 sec
2,850 800 x 600 3.1 sec 6.3 sec 12.6 sec
4,450 640 x 480 3.1 sec 6.3 sec 12.6 sec
5,000 512 x 512 3.3 sec 6.5 sec 13.1 sec
14,750 320 x 240 3.8 sec 7.6 sec 15.2 sec
43,500 128 x 128 6.0 sec 12.0 sec 24.1 sec
204,100 128 x 10 16.4 sec 32.9 sec 66.0 sec
